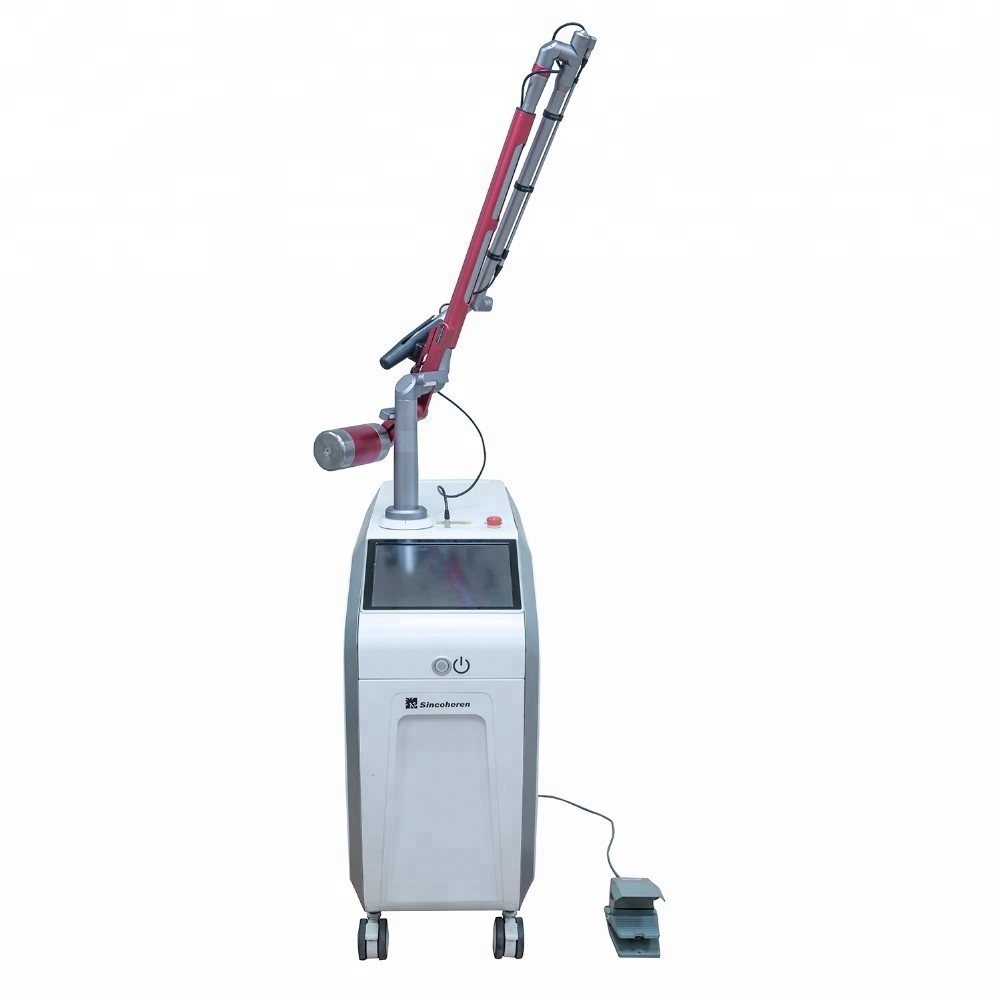

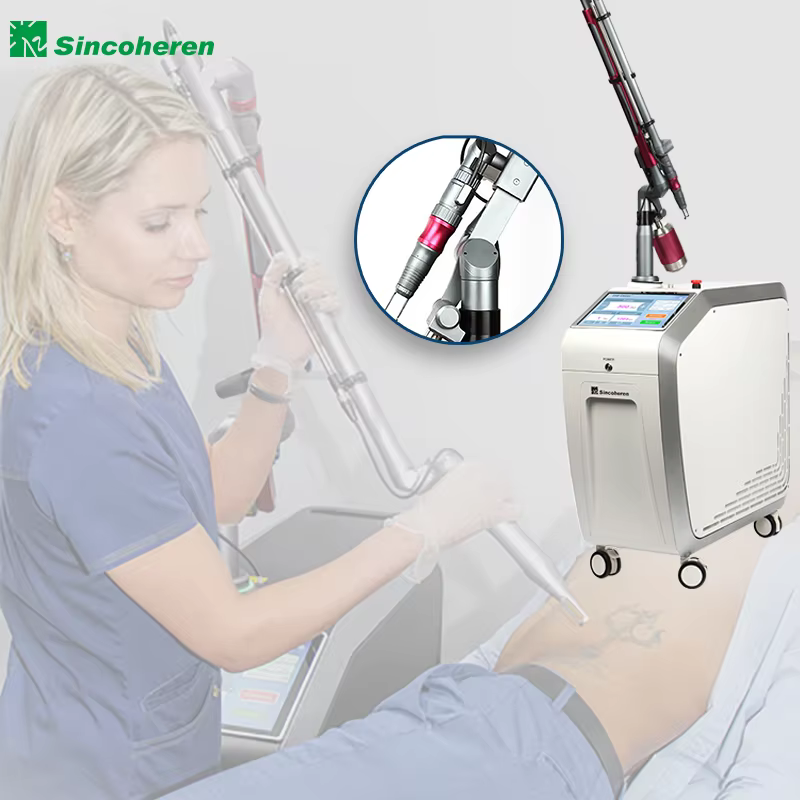

Professional Medical Skin Treatment Laser Machine ND Yag Tattoo Removal Picosecond Laser Beauty Machine with 532nm Wavelengths

Product Description

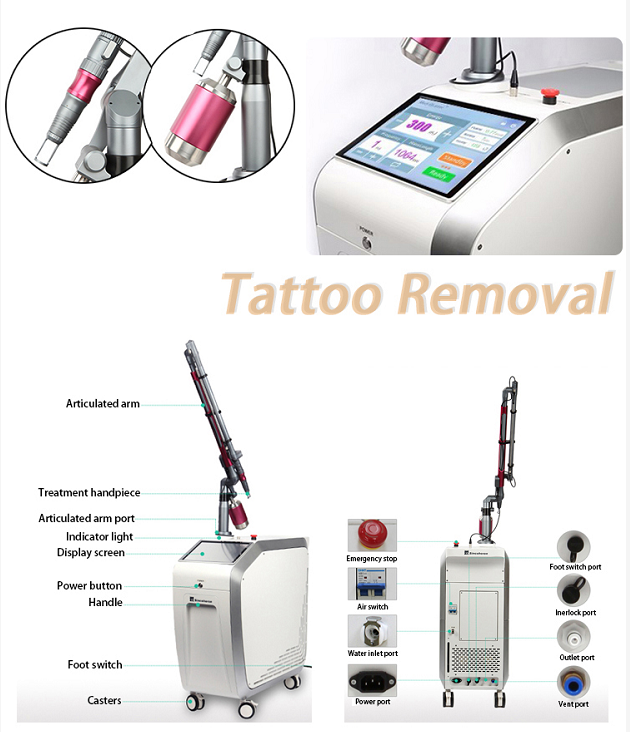

Details Display
Details Display
Laser type High energy Q-Switched Nd:YAG
Wavelength 1064nm 532nm
Pulse width 8ns ns
Pulse energy 1000mJ 500mJ
Pulse energy Range 100~1000mJ 100~500mJ
Frequency 5Hz 5Hz
Spot size 2~10mm adjustable 2~10mm adjustable
Fluence 1.3~32J/cm² 0.6~16J/cm²
Aiming beam 635nm, <5mW
Electrical requirements 110~240VAC 50-60Hz 1200VA
Dimension 351mm x 925mm x 775mm (without optical articulated arm)
Net weight 80kg

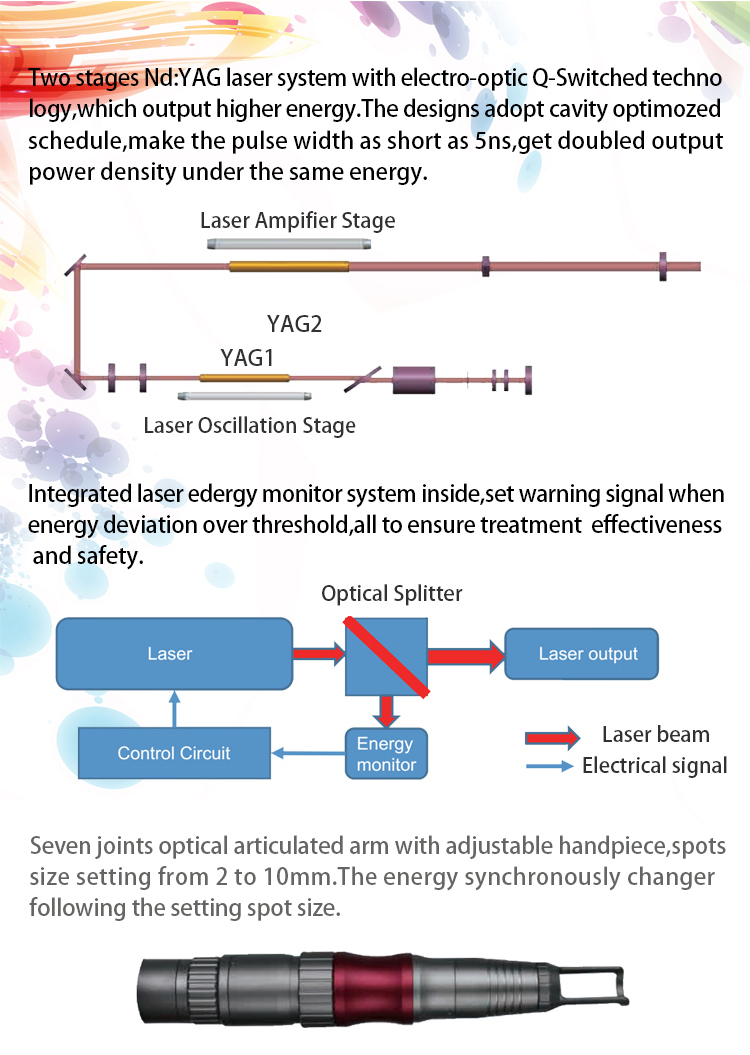

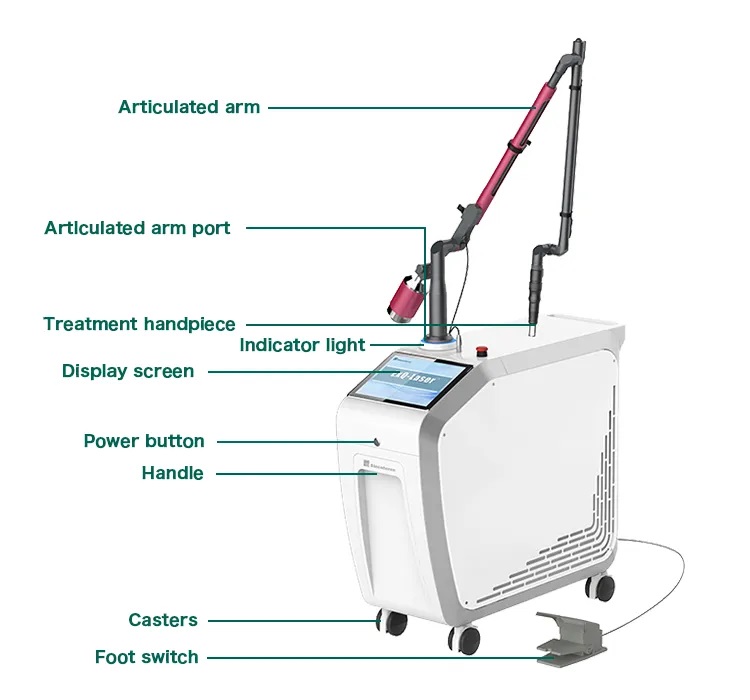

Device detail

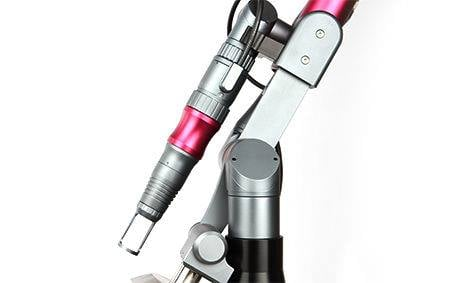

Handpiece detail 1

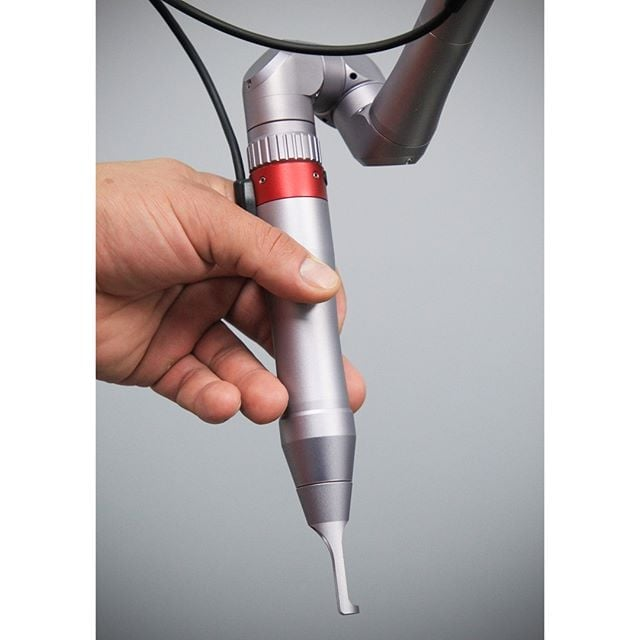

Handpiece detail 2
Interface

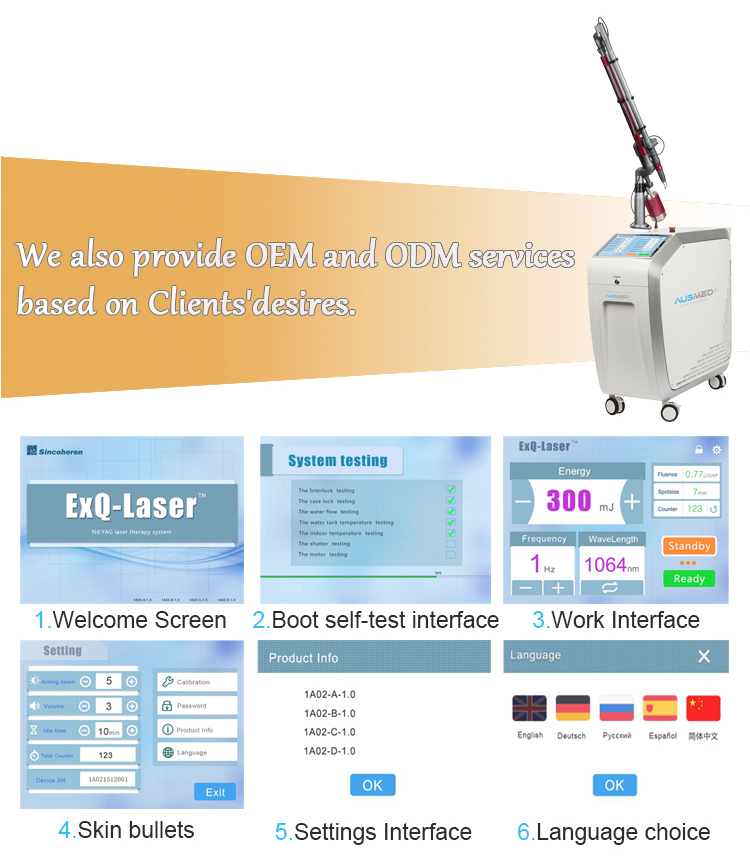

Interface display
Product Application

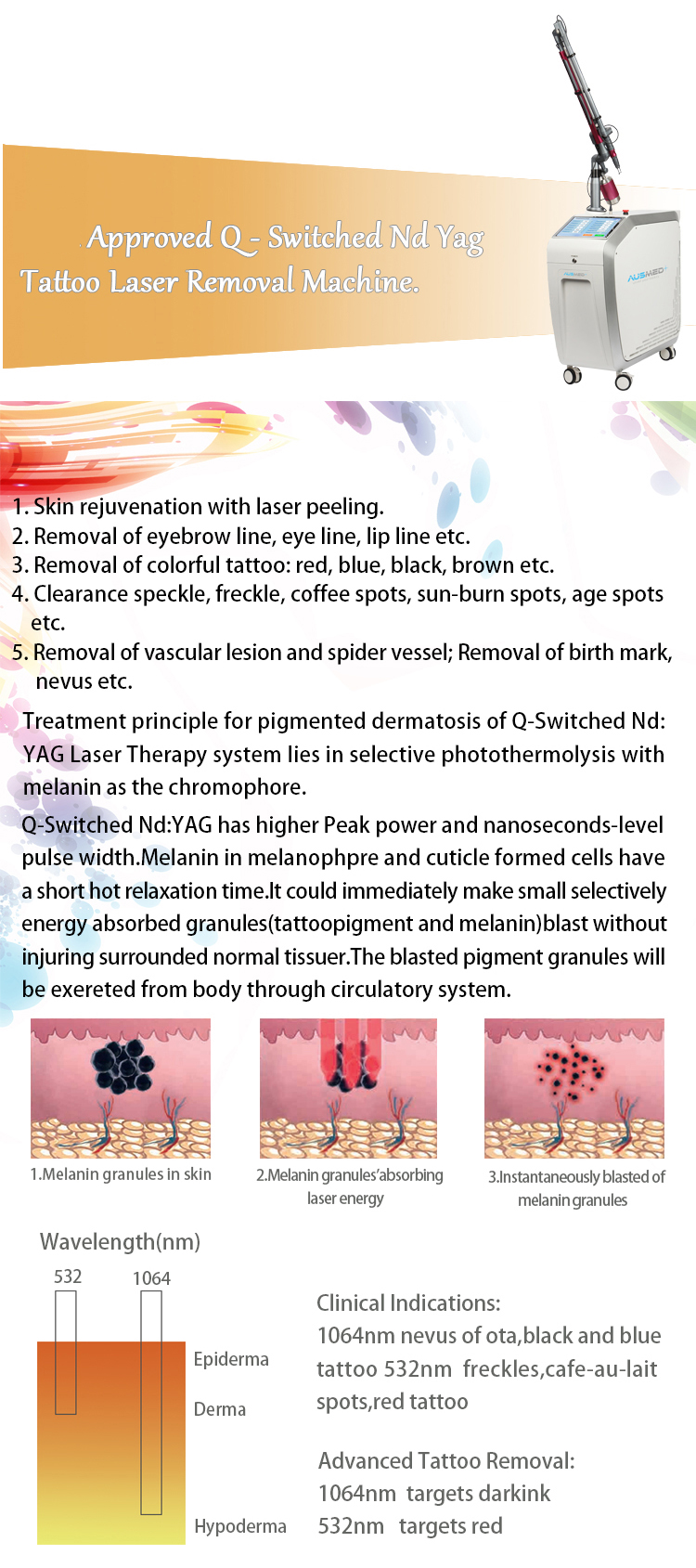

Product application guidelines
Before and After
Before and after case 1
Before and after case 2
Before and after case 3
Before and after case 4
Before and after case 5
Before and after case 6
Packing & Delivery

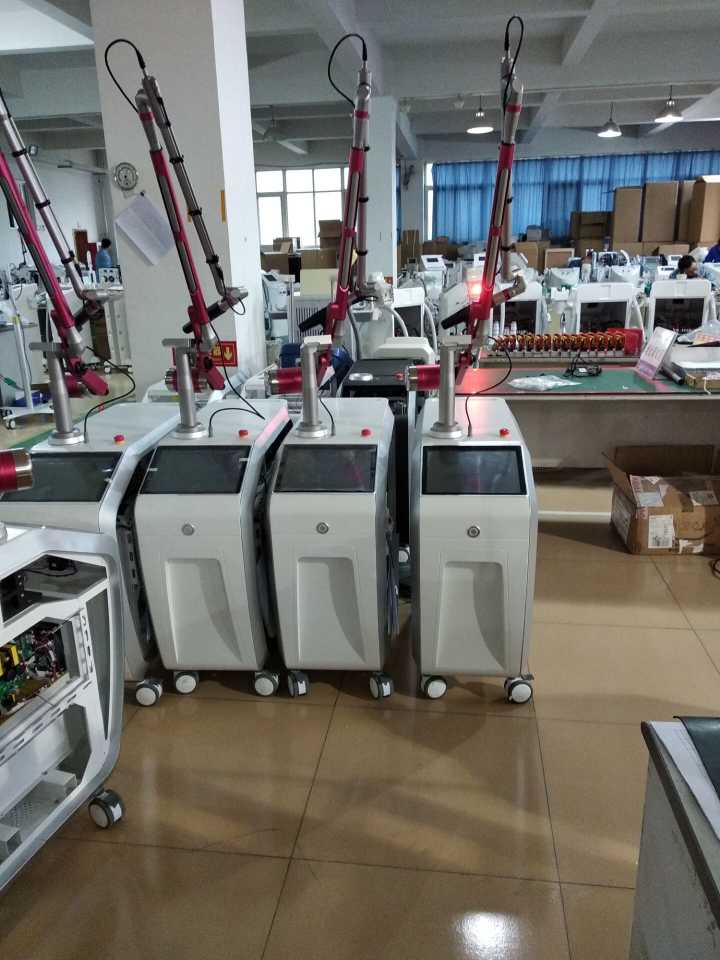

Package view 1
Package view 2
Company Profile
Factory workspace

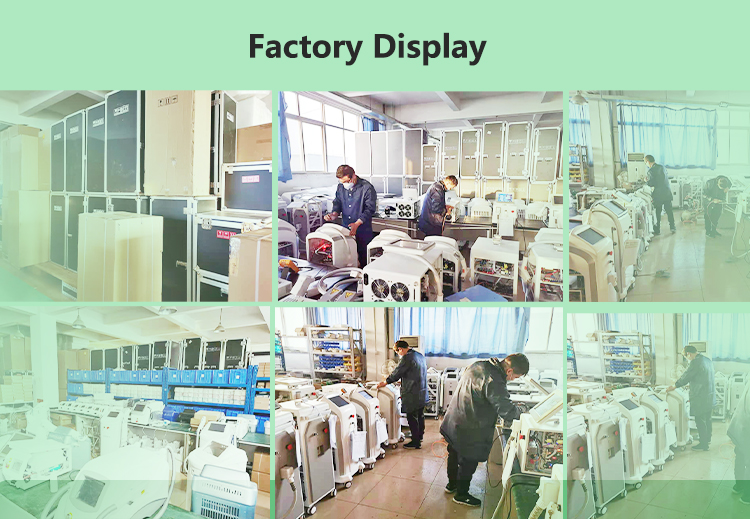

Production line
Warehouse display
Certificate
Product quality certificate
Packing & Delivery
Safe logistics packaging
Contact Us
Contact information banner
Frequently Asked Questions
Q How does the High Energy Q-Switched Nd:YAG Laser work?
The Q-Switched Nd:YAG laser delivers light of specific wavelengths in extremely high energy, ultra-short nanosecond pulses. This light is absorbed by the targeted pigment in the skin (such as tattoo ink or melanin), causing the pigment to shatter into tiny particles that are then naturally processed and eliminated by the body's lymphatic system.
Q What is the difference between the 1064nm and 532nm wavelengths?
The 1064nm wavelength is ideal for treating dark inks (black, dark blue) and deep dermal pigments, and is safe for darker skin types. The 532nm wavelength is designed to treat superficial pigmentations and brighter tattoo colors, such as red, orange, and yellow.
Q Is the treatment painful, and is there any downtime?
Most patients experience minor discomfort, often described as the snap of a rubber band. Depending on the intensity of the treatment, there may be slight redness, swelling, or crusting, which typically resolves within a few days to a week.
Q How many sessions are required for complete tattoo removal?
The number of sessions depends on various factors including tattoo size, ink depth, color complexity, and individual skin response. Generally, complete removal requires 5 to 10 sessions spaced approximately 6 to 8 weeks apart.
Q Why is the adjustable spot size (2-10mm) important?
An adjustable spot size allows operators to adapt the laser beam size depending on the treatment area. Larger spot sizes provide deeper penetration for denser pigments, while smaller spot sizes allow precise targeting of delicate areas and smaller spots.
Q What are the installation and power requirements for this machine?
The system operates under standard electrical requirements of 110~240VAC at 50-60Hz with a maximum power of 1200VA. It has a heavy-duty design of 80kg, requiring a stable setup area to accommodate its dimensions of 351mm x 925mm x 775mm.
